รายละเอียดสินค้า
สถานที่กำเนิด: เหอหนานประเทศจีน
ชื่อแบรนด์: Zhenglan cable
ได้รับการรับรอง: 3C，ISO 9001:2015，ISO 14001:2005
หมายเลขรุ่น: ใช้เครื่องมือ 450 / 750V 8x0.5 sqmm สายเคเบิลควบคุมหุ้มฉนวนพีวีซีหุ้มฉนวนพีวีซี
เงื่อนไขการชำระเงินและการจัดส่ง
จำนวนสั่งซื้อขั้นต่ำ: 1,000 เมตร
ราคา: ต่อรองได้
รายละเอียดการบรรจุ: ม้วนหรือเป็นลูกค้า
เวลาการส่งมอบ: 5 ~ 10 วัน
เงื่อนไขการชำระเงิน: แอล/C, ที/ที
สามารถในการผลิต: 82,000 กม./ปี
ชื่อ: |
สายควบคุม |
คอนดักเตอร์: |
ทองแดง |
ฉนวนกันความร้อน: |
พีวีซี |
ฝัก: |
พีวีซี |
แอปพลิเคชัน: |
การใช้เครื่องมือ |
สี: |
สีดำ |
แกนกลาง: |
หลายรายการ |
แรงดันไฟฟ้า: |
0.6/1kV |
ชื่อ: |
สายควบคุม |
คอนดักเตอร์: |
ทองแดง |
ฉนวนกันความร้อน: |
พีวีซี |
ฝัก: |
พีวีซี |
แอปพลิเคชัน: |
การใช้เครื่องมือ |
สี: |
สีดำ |
แกนกลาง: |
หลายรายการ |
แรงดันไฟฟ้า: |
0.6/1kV |

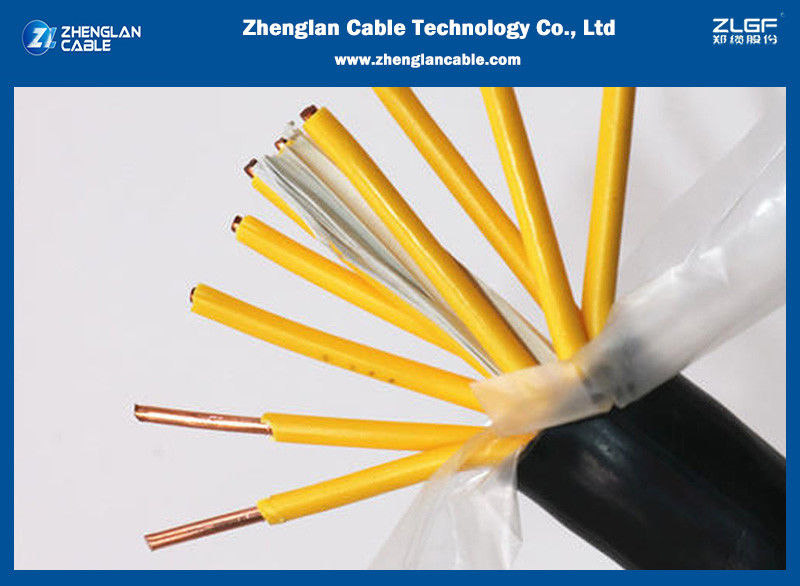

instrument use 450/750V 8x0.5sqmm pvc insulated pvc sheathed control cable introduction
Ø Standards:IEC60227, IEC60502-1
Ø Conductor:Bare stranded copper conductor-class 5 IEC228
Ø Insulation/sheath: PVC or PVC of flame retardant and other property
Ø Voltage rating: 450/750V,600/1000V
Ø Temperature range: 0°C to 70°C, 0-90°C
Ø Application:Used as power and connecting cables in mechanical engineering for tooling machinery, control unit, production lines,
transportation equipment, conveyor and assembly lines as well as in plant construction
Ø Remark:the Application: For Mains and Sub Mains Control Circuits (Fixed Application) – Industrial and Commercialcable can be with copper braided screen or steel wire armor and other enhanced feature
Application: For Mains and Sub Mains Control Circuits (Fixed Application) – Industrial and Commercial
instrument use 450/750V 8x0.5sqmm pvc insulated pvc sheathed control cable reference parameters
| Cross section (mm2) | Conductor construction (No/mm) | Insulation thickness (mm) | Insulation thickness (mm) | Sheath thickness (mm) | Sheath thickness (mm) | Overall diameter max (mm) | Overall diameter max (mm) | Max.D.C resistance of at 20℃ MΩ/Km |
| 450/750V | 6000/1000V | 450/750V | 6000/1000V | 450/750V | 6000/1000V | |||
| 2X0.75 | 1/0.97 | 0.6 | 0.8 | 1.2 | 1.8 | 7.3 | 9.3 | 24.5 |
| 2X0.75 | 7/0.37 | 0.6 | 0.8 | 1.2 | 1.8 | 7.6 | 9.6 | 24.5 |
| 2X1 | 1/1.13 | 0.6 | 0.8 | 1.2 | 1.8 | 7.7 | 9.7 | 18.1 |
| 2X1 | 7/0.43 | 0.6 | 0.8 | 1.2 | 1.8 | 8.0 | 10.0 | 18.1 |
| 2X1.5 | 1/1.38 | 0.7 | 0.8 | 1.2 | 1.8 | 8.6 | 10.2 | 12.1 |
| 2X1.5 | 7/0.52 | 0.7 | 0.8 | 1.2 | 1.8 | 8.9 | 10.5 | 12.1 |
| 2X2.5 | 1/1.78 | 0.7 | 0.8 | 1.2 | 1.8 | 9.8 | 11.0 | 7.41 |
| 2X2.5 | 7/0.68 | 0.7 | 0.8 | 1.2 | 1.8 | 10.3 | 11.5 | 7.41 |
| 2X4 | 1/2.25 | 0.8 | 1.0 | 1.2 | 1.8 | 10.7 | 12.7 | 4.61 |
| 2X4 | 7/0.85 | 0.8 | 1.0 | 1.2 | 1.8 | 11.3 | 13.3 | 4.61 |
| 2X6 | 1/2.76 | 0.8 | 1.0 | 1.2 | 1.8 | 11.7 | 13.7 | 3.08 |
| 2X6 | 7/1.04 | 0.8 | 1.0 | 1.2 | 1.8 | 12.4 | 14.4 | 3.08 |
| 2X10 | 7/1.35 | 1.0 | 1.0 | 1.2 | 1.8 | 15.7 | 16.3 | 1.83 |
| 3X0.75 | 1/0.97 | 0.6 | 0.8 | 1.2 | 1.8 | 7.7 | 9.7 | 24.5 |
| 3X0.75 | 7/0.37 | 0.6 | 0.8 | 1.2 | 1.8 | 8.0 | 10.0 | 24.5 |
| 3X1 | 1/1.13 | 0.6 | 0.8 | 1.2 | 1.8 | 8.0 | 10.1 | 18.1 |
| 3X1 | 7/0.43 | 0.6 | 0.8 | 1.2 | 1.8 | 8.4 | 10.4 | 18.1 |
| 3X1.5 | 1/1.38 | 0.7 | 0.8 | 1.2 | 1.8 | 9.0 | 10.6 | 12.1 |
| 3X1.5 | 7/0.52 | 0.7 | 0.8 | 1.2 | 1.8 | 9.4 | 11.0 | 12.1 |
| 3X2.5 | 1/1.78 | 0.8 | 0.8 | 1.2 | 1.8 | 10.3 | 11.5 | 7.41 |
| 3X2.5 | 7/0.68 | 0.8 | 0.8 | 1.2 | 1.8 | 10.8 | 12.0 | 7.41 |
| 3X4 | 1/2.25 | 0.8 | 1.0 | 1.2 | 1.8 | 11.3 | 13.4 | 4.61 |
| 3X4 | 7/0.85 | 0.8 | 1.0 | 1.2 | 1.8 | 11.9 | 14.0 | 4.61 |
| 3X6 | 1/2.76 | 0.8 | 1.0 | 1.2 | 1.8 | 13.0 | 14.5 | 3.08 |
| 3X6 | 7/1.04 | 0.8 | 1.0 | 1.2 | 1.8 | 13.8 | 15.2 | 3.08 |
| 3X10 | 7/1.35 | 1.0 | 1.0 | 1.2 | 1.8 | 16.6 | 17.2 | 1.83 |
| 4X0.75 | 1/0.97 | 0.6 | 0.8 | 1.2 | 1.8 | 8.2 | 10.4 | 24.5 |
| 4X0.75 | 7/0.37 | 0.6 | 0.8 | 1.2 | 1.8 | 8.6 | 10.7 | 24.5 |
| 4X1 | 1/1.13 | 0.6 | 0.8 | 1.2 | 1.8 | 8.6 | 10.8 | 18.1 |
| 4X1 | 7/0.43 | 0.6 | 0.8 | 1.2 | 1.8 | 9.0 | 11.2 | 18.1 |
| 4X1.5 | 1/1.38 | 0.7 | 0.8 | 1.2 | 1.8 | 9.7 | 11.4 | 12.1 |
| 4X1.5 | 7/0.52 | 0.7 | 0.8 | 1.2 | 1.8 | 10.1 | 11.8 | 12.1 |
| 4X2.5 | 1/1.78 | 0.8 | 0.8 | 1.2 | 1.8 | 11.2 | 12.4 | 7.41 |
| 4X2.5 | 7/0.68 | 0.8 | 0.8 | 1.2 | 1.8 | 11.8 | 13.0 | 7.41 |
| 4X4 | 1/2.25 | 0.8 | 1.0 | 1.5 | 1.8 | 12.9 | 14.5 | 4.61 |
| 4X4 | 7/0.85 | 0.8 | 1.0 | 1.5 | 1.8 | 13.6 | 15.2 | 4.61 |
| 4X6 | 1/2.76 | 0.8 | 1.0 | 1.5 | 1.8 | 14.1 | 15.7 | 3.08 |
| 4X6 | 7/1.04 | 1.0 | 1.0 | 1.5 | 1.8 | 15.0 | 16.6 | 3.08 |
| 4X10 | 7/1.35 | 1.0 | 1.0 | 1.5 | 1.8 | 18.2 | 18.8 | 1.83 |
| 5X0.75 | 1/0.97 | 0.6 | 0.8 | 1.2 | 1.8 | 8.9 | 11.1 | 24.5 |
| 5X0.75 | 7/0.37 | 0.6 | 0.8 | 1.2 | 1.8 | 9.2 | 11.5 | 24.5 |
| 5X1 | 1/1.13 | 0.6 | 0.8 | 1.2 | 1.8 | 9.3 | 11.6 | 18.1 |
| 5X1 | 7/0.43 | 0.6 | 0.8 | 1.2 | 1.8 | 9.7 | 12.0 | 18.1 |
| 5X1.5 | 1/1.38 | 0.7 | 0.8 | 1.2 | 1.8 | 10.5 | 12.2 | 12.1 |
| 5X1.5 | 7/0.52 | 0.7 | 0.8 | 1.2 | 1.8 | 11.0 | 12.7 | 12.1 |
| 5X2.5 | 1/1.78 | 0.8 | 0.8 | 1.5 | 1.8 | 12.7 | 13.3 | 7.41 |
| 5X2.5 | 7/0.68 | 0.8 | 0.8 | 1.5 | 1.8 | 13.4 | 14.0 | 7.41 |
| 5X4 | 1/2.25 | 0.8 | 1.0 | 1.5 | 1.8 | 14.0 | 15.7 | 4.61 |
| 5X4 | 7/0.85 | 0.8 | 1.0 | 1.5 | 1.8 | 14.8 | 16.5 | 4.61 |
| 5X6 | 1/2.76 | 0.8 | 1.0 | 1.5 | 1.8 | 15.4 | 17.1 | 3.08 |
| 5X6 | 7/1.04 | 0.8 | 1.0 | 1.5 | 1.8 | 16.3 | 18.0 | 3.08 |
| 5X10 | 7/1.35 | 1.0 | 1.0 | 1.7 | 1.8 | 20.3 | 20.5 | 1.83 |
| 6X0.75 | 1/0.97 | 0.6 | 0.8 | 1.2 | 1.8 | 9.5 | 11.9 | 24.5 |
| 6X0.75 | 7/0.37 | 0.6 | 0.8 | 1.2 | 1.8 | 9.9 | 12.3 | 24.5 |
| 6X1 | 1/1.13 | 0.6 | 0.8 | 1.2 | 1.8 | 10.0 | 12.4 | 18.1 |
| 6X1 | 7/0.43 | 0.6 | 0.8 | 1.2 | 1.8 | 10.5 | 12.9 | 18.1 |
Why Choose Zhenglan Cable:
About Zhenglan Cable
Zhenglan Cable Technology Co., Ltd, are manufacturer of cable and wire with over 20years' experience.
Our factory workshop taking up about 60000SQM is located in Wuzhi County, Jiaozuo city, Henan province, in the middle of China.
Oversea sales center locates in Zhengzhou city, Henan, about 10minutes walk to Zhengdong Railway station, 45minutes' drive to Xinzheng International Airport.
Our main products are
overhead transmission line use bare conductor(ACSR, AAC, AAAC etc)
1-35kv overhead transmission line use insulated conductor
power distribution use 0.6/1kv, 1.8/3kv PVC/XLPE/PE insulated LV(low voltage) power cable armored or unarmored
power distribution use 3.6/6kv, 6/10kv,8.7/10kv, 8.7/15kv, 12/20kv, 21/35kv, 26/35kv XLPE insulated MV(medium voltage) power cable armored or unarmored;
300/300V, 300/500V, 450/750V cotrol cable, house wire
Why choose Zhenglan Cable Technology Co., Ltd
